Problem 10.1 - 1st Moment of Area

Problem Statement

For the built-up T-beam shown, determine the first moment of area, Q, at point A and at the centroid of the cross-section. Assume dimensions b₁ = 1.5 in., b₂ = 5.5 in., h₁ = 7.5 in., and h₂ = 1.5 in.

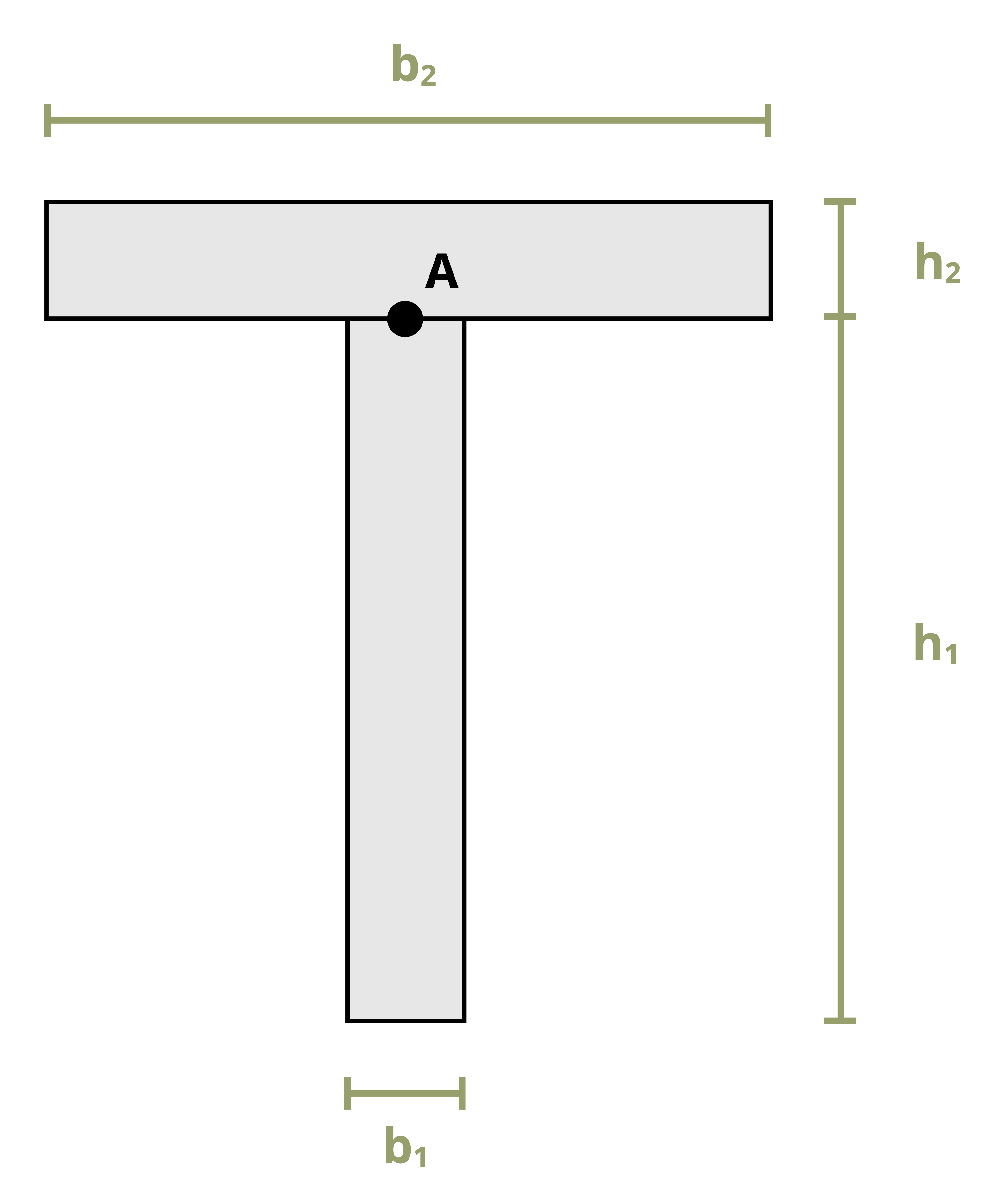

A T beam has an upper base of b2 and a lower base of b1. The T beam also has a stem height of h1 and a top height of h2. [Problem adapted from © Chris Galitz CC BY NC-SA 4.0]
