Problem 9.25 - Beam Design

Problem Statement

A wide flange I-beam is subjected to both a distributed load w = 4 kN/m and a point load F = 25 kN. If length L₁ = 10 m, L₂ = 5 m, and the failure stress is 375 MPa, what is the lightest W-beam from Appendix A that could be used for the beam?

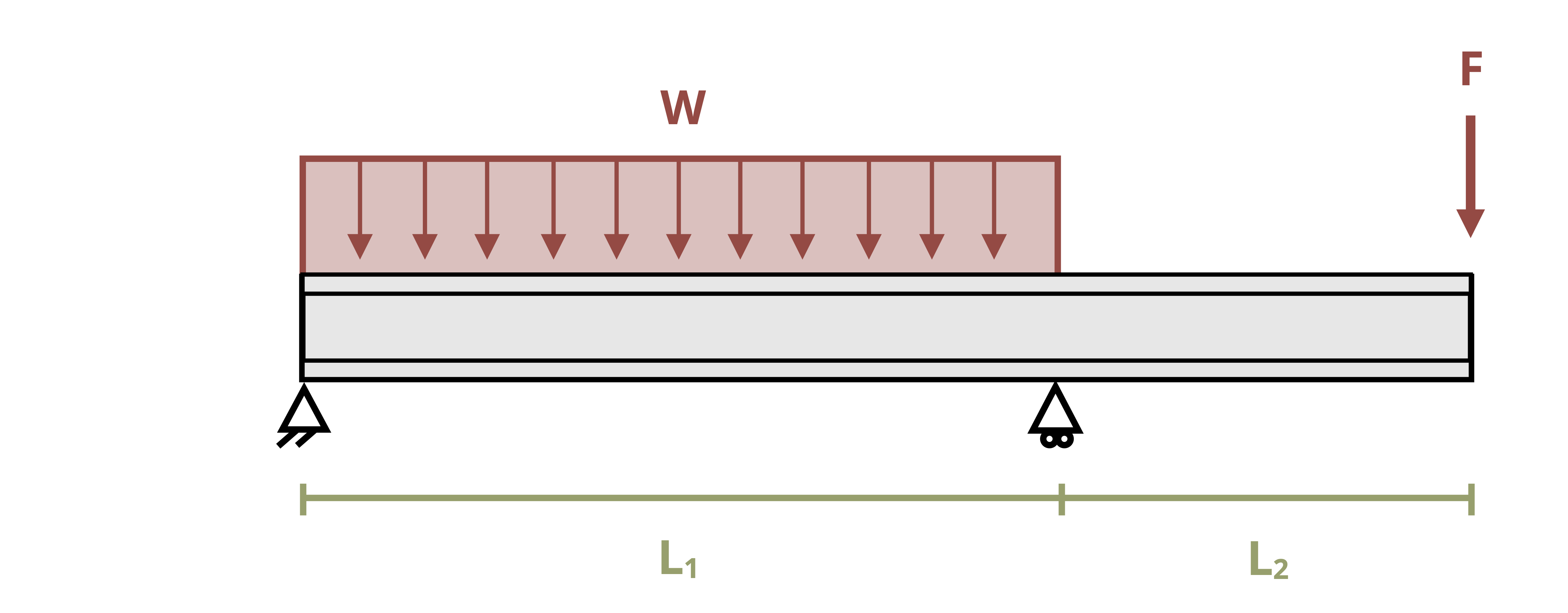

Figure 1: A I beam is subjected to a distributed load and a tip load.

[Problem adapted from © Kurt Gramoll CC BY NC-SA 4.0]
