Problem 4.24 - Multiaxial Hooke’s Law

Problem Statement

A strain gauge is placed on a polymer test sample with an elastic modulus E = 1 x 10⁷ psi and a Poisson’s ratio of v = 0.3. When a P₁ = 5 kip vertical load is applied to the test sample, the strain gauge reads a strain of SG = 11 x 10^-6 in the x-direction. What is the relative error of the strain gauge compared to the theoretical strain of the test sample? Note: relative error is defined to be the difference between the measured value and the theoretical value divided by the theoretical value.

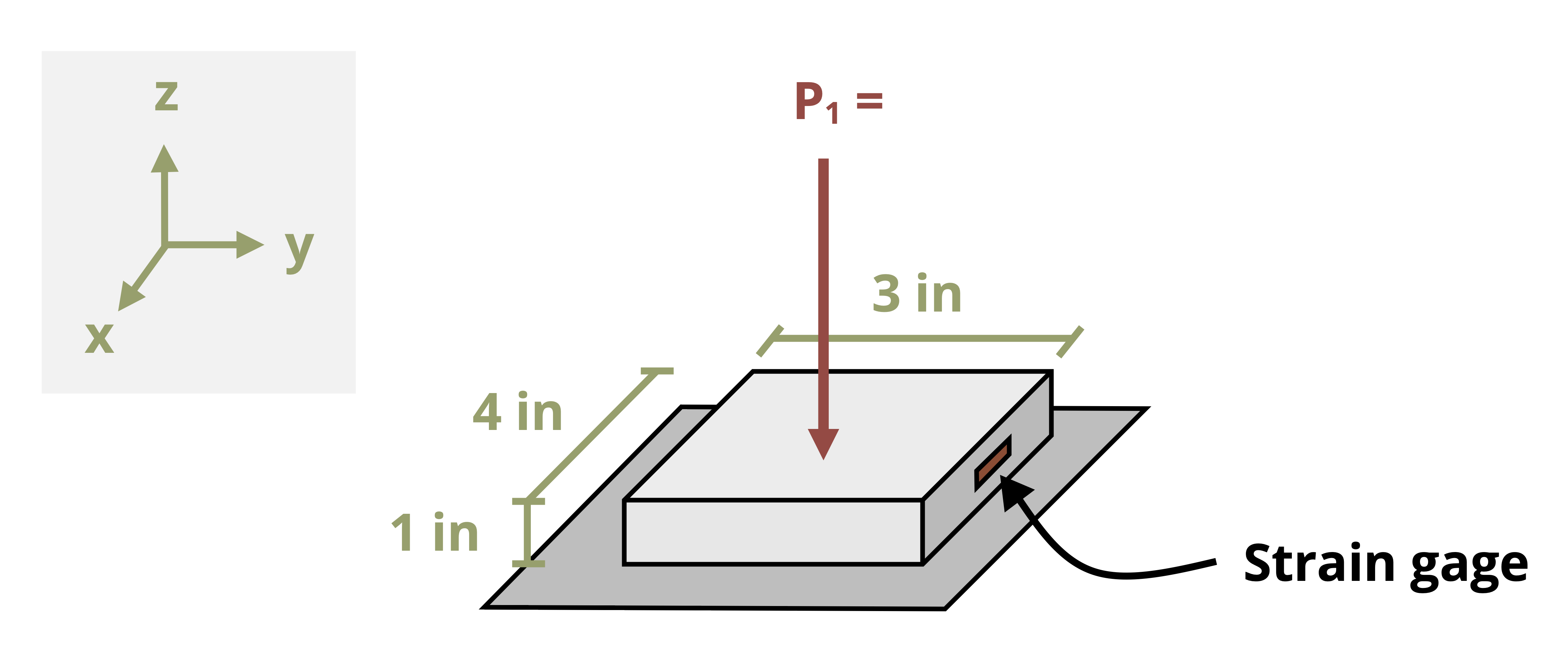

A strain gauge is placed on a test sample and a vertical load is applied to the test sample. The sides of the length in the x direction of the sample is 4 in, in the y direction it is 3 in, and it is 1 in in the z direction. — Figure 1: A strain gauge is placed on a test sample and a vertical load is applied to the test sample.
