Problem 9.21 - Beam Design

Problem Statement

A beam with a rectangular cross-section is subjected to a distributed load w = 3 kN/m as shown. The maximum allowable bending stress in the beam is 7 MPa. If length L = 5 m and the cross-sectional area of the beam is A = 0.025 m2, determine the required width (b) of the cross-section.

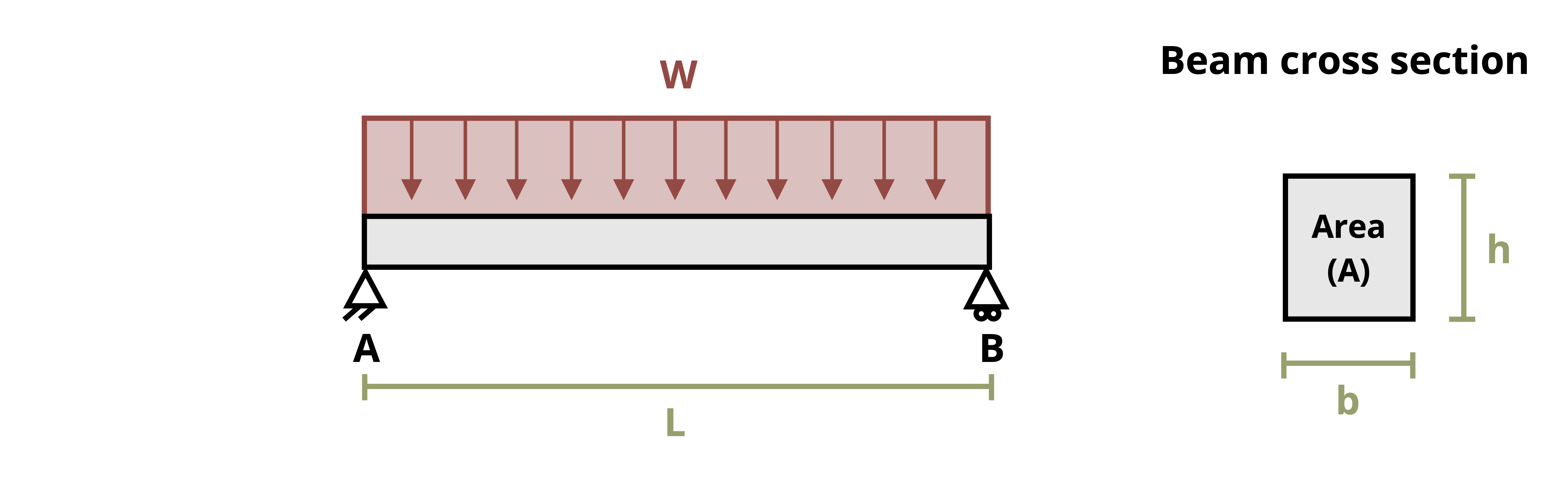

A beam is subjected to a distributed load w between A and B. The distance between A and B is L. The beam has a cross section of height h and width b.

Figure 1: A beam is subjected to a distributed load.

[Problem adapted from © Kurt Gramoll CC BY NC-SA 4.0]
