Problem 12.27 - Mohr’s Circle

[Problem adapted from © Kurt Gramoll CC BY NC-SA 4.0]

#| standalone: true
#| viewerHeight: 600
#| components: [viewer]

from shiny import App, render, ui, reactive
import random
import asyncio
import io
import math
import string
from datetime import datetime
from pathlib import Path

def generate_random_letters(length):
    return ''.join(random.choice(string.ascii_lowercase) for _ in range(length))

problem_ID = "526"
sigma_x = reactive.Value("__")
sigma_y = reactive.Value("__")
tau_xy = reactive.Value("__")

attempts = ["Timestamp,Attempt,Answer1,Answer2,Feedback\n"]

app_ui = ui.page_fluid(
    ui.markdown("**Please enter your ID number from your instructor and click to generate your problem**"),
    ui.input_text("ID", "", placeholder="Enter ID Number Here"),
    ui.input_action_button("generate_problem", "Generate Problem", class_="btn-primary"),
    ui.markdown("**Problem Statement**"),
    ui.output_ui("ui_problem_statement"),
    ui.input_text("answer1", "Your maximum in-plane shear stress in units of MPa", placeholder="Please enter your max in-plane shear stress"),
    ui.input_text("answer2", "Your angle in units of degrees", placeholder="Please enter your angle"),
    ui.input_action_button("submit", "Submit Answers", class_="btn-primary"),
    ui.download_button("download", "Download File to Submit", class_="btn-success"),
)

def server(input, output, session):
    attempt_counter = reactive.Value(0)

    @output
    @render.ui
    def ui_problem_statement():

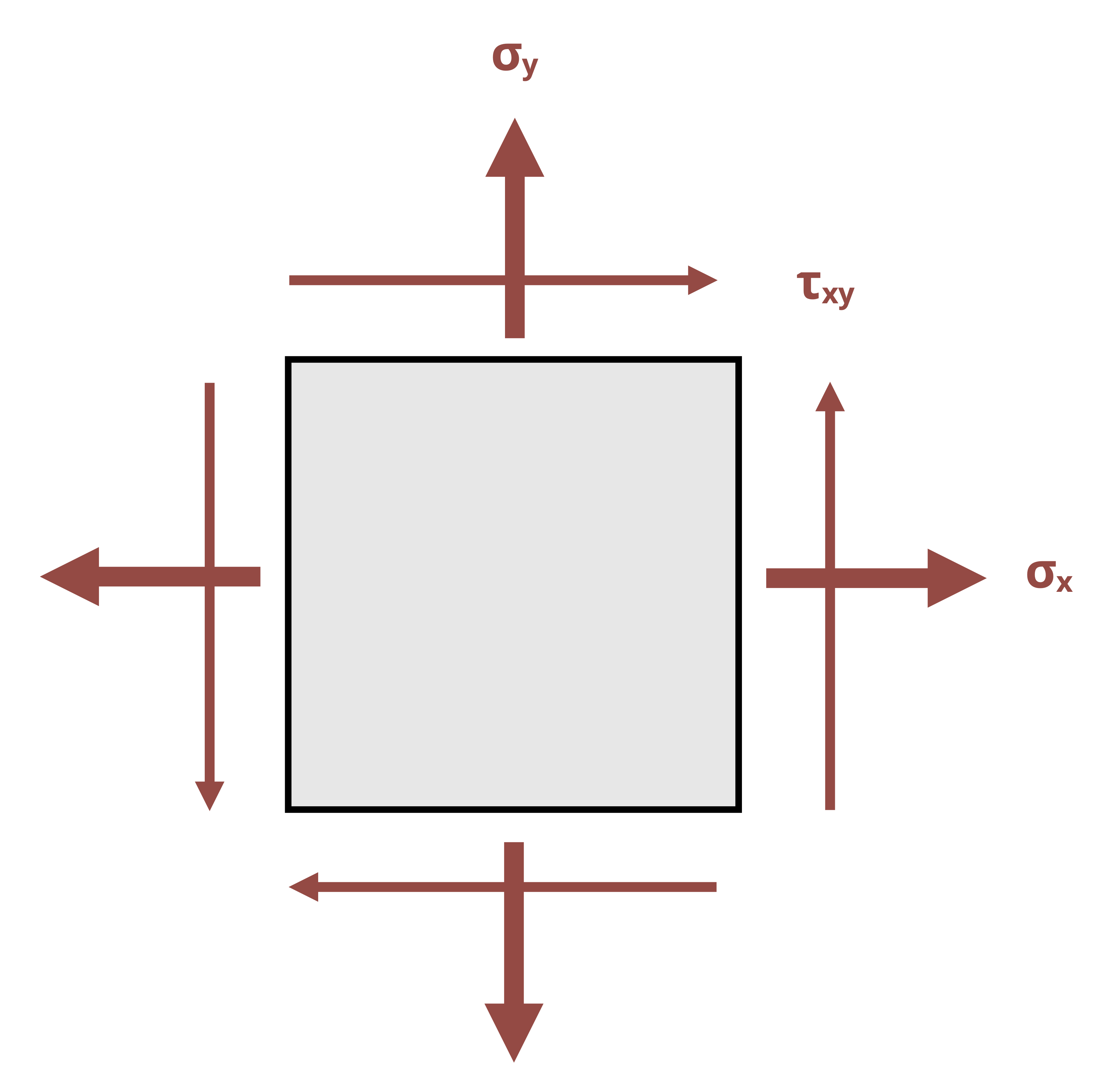

        return [ui.markdown(f"The state of stress at a point in a beam is shown, where σ<sub>x</sub> = {sigma_x()} MPa, σ<sub>y</sub> = {sigma_y()} MPa, and τ<sub>xy</sub> = {tau_xy()} MPa. Construct Mohr's Circle for the given state of stress. Then determine the maximum in-plane shear stress τ<sub>max</sub> for this state of stress, and the angle at which this stress occurs, measured counterclockwise from the x-axis.")]
