Problem 5.53 - Thermal Deformation

[Problem adapted from © Kurt Gramoll CC BY NC-SA 4.0]

#| standalone: true
#| viewerHeight: 600
#| components: [viewer]

from shiny import App, render, ui, reactive
import random
import asyncio
import io
import math
import string
from datetime import datetime
from pathlib import Path

def generate_random_letters(length):
    # Generate a random string of letters of specified length
    return ''.join(random.choice(string.ascii_lowercase) for _ in range(length))

problem_ID="225"
L1=reactive.Value("__")
L2=reactive.Value("__")
L3=reactive.Value("__")
F=reactive.Value("__")
dT=reactive.Value("__")
alphaA=10*10**-6
alphaB=5*10**-6
alphaC=7*10**-6
EA=40*10**9
EB=120*10**9
EC=80*10**9

attempts=["Timestamp,Attempt,Answer,Feedback\n"]

app_ui = ui.page_fluid(
    ui.markdown("**Please enter your ID number from your instructor and click to generate your problem**"),
    ui.input_text("ID","", placeholder="Enter ID Number Here"),
    ui.input_action_button("generate_problem", "Generate Problem", class_="btn-primary"),
    ui.markdown("**Problem Statement**"),
    ui.output_ui("ui_problem_statement"),
    ui.input_text("answer","Your Answer in units of mm", placeholder="Please enter your answer"),
    ui.input_action_button("submit", "Submit Answer", class_="btn-primary"),
    ui.download_button("download", "Download File to Submit", class_="btn-success"),
)


def server(input, output, session):
    # Initialize a counter for attempts
    attempt_counter = reactive.Value(0)

    @output
    @render.ui
    def ui_problem_statement():

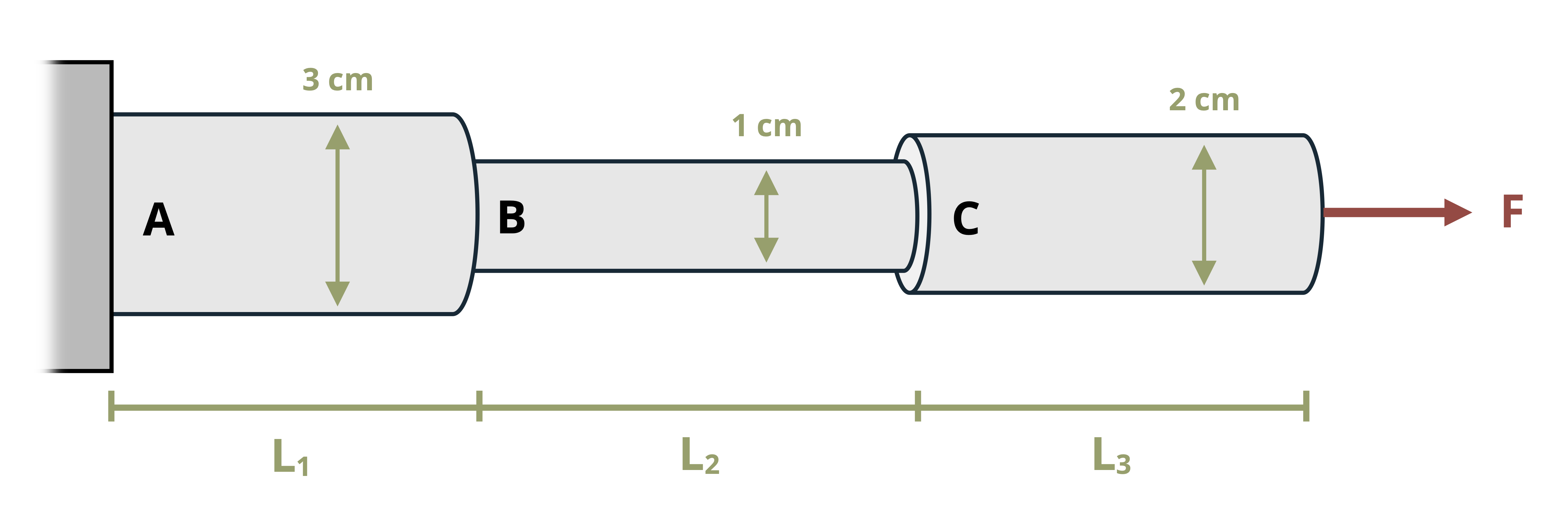

        return[ui.markdown(f"Three cylindrical rods of lengths L<sub>1</sub> = {L1()} m, L<sub>2</sub> = {L2()} m, and L<sub>3</sub> = {L3()} m are connected together. A force F = {F()} kN is applied to the free end and all three rods are heated by {dT()} °C. The coefficient of thermal expansion, α, and elastic modulus, E, for each material are α<sub>A</sub> = 10 x 10<sup>-6</sup> /°C, α<sub>B</sub> = 5 x 10<sup>-6</sup> /°C, α<sub>C</sub> = 7 x 10<sup>-6</sup> /°C, E<sub>A</sub> = 40 GPa, E<sub>B</sub> = 120 GPa, and E<sub>C</sub> = 80 GPa. What is the total deflection of the right rod tip?  ")]

    @reactive.Effect
    @reactive.event(input.generate_problem)
    def randomize_vars():
        random.seed(input.ID())
        L1.set(random.randrange(10, 40, 1)/10)
        L2.set(round((L1()*0.8),1))
        L3.set(round((L1()*2/3),1))
        F.set(random.randrange(5, 50, 1))
        dT.set(random.randrange(100, 300, 10))

    @reactive.Effect
    @reactive.event(input.submit)
    def _():
        attempt_counter.set(attempt_counter() + 1)  # Increment the attempt counter on each submission.
        deltaL = (F()*L1()*1000)/(EA*math.pi*.015**2) + (F()*L2()*1000)/(EB*math.pi*.005**2) + (F()*L3()*1000)/(EC*math.pi*.01**2)
        deltaT = alphaA*dT()*L1() + alphaB*dT()*L2() + alphaC*dT()*L3()
        instr= (deltaL + deltaT)*1000
        if math.isclose(float(input.answer()), instr, rel_tol=0.01):
            check = "*Correct*"
            correct_indicator = "JL"
        else:
            check = "*Not Correct.*"
            correct_indicator = "JG"

        # Generate random parts for the encoded attempt.
        random_start = generate_random_letters(4)
        random_middle = generate_random_letters(4)
        random_end = generate_random_letters(4)
        encoded_attempt = f"{random_start}{problem_ID}-{random_middle}{attempt_counter()}{correct_indicator}-{random_end}{input.ID()}"

        # Store the most recent encoded attempt in a reactive value so it persists across submissions
        session.encoded_attempt = reactive.Value(encoded_attempt)

        # Append the attempt data to the attempts list without the encoded attempt
        attempts.append(f"{datetime.now()}, {attempt_counter()}, {input.answer()}, {check}\n")

        # Show feedback to the user.
        feedback = ui.markdown(f"Your answer of {input.answer()} is {check}.")
        m = ui.modal(
            feedback,
            title="Feedback",
            easy_close=True
        )
        ui.modal_show(m)

    @session.download(filename=lambda: f"Problem_Log-{problem_ID}-{input.ID()}.csv")
    async def download():
        # Start the CSV with the encoded attempt (without label)
        final_encoded = session.encoded_attempt() if session.encoded_attempt is not None else "No attempts"
        yield f"{final_encoded}\n\n"

        # Write the header for the remaining CSV data once
        yield "Timestamp,Attempt,Answer,Feedback\n"

        # Write the attempts data, ensure that the header from the attempts list is not written again
        for attempt in attempts[1:]:  # Skip the first element which is the header
            await asyncio.sleep(0.25)  # This delay may not be necessary; adjust as needed
            yield attempt

# App installation
app = App(app_ui, server)
