Problem 12.4 - Equations

Problem Statement

A material made from fibers is stressed as shown in the diagram. Stresses σ_x = 20 ksi, σ_y = 10 ksi, and τ_xy = 10 ksi. Determine the magnitude of the normal stress acting perpendicular to the fibers and the magnitude of the shear stress acting parallel to the fibers if angle Θ = 20°.

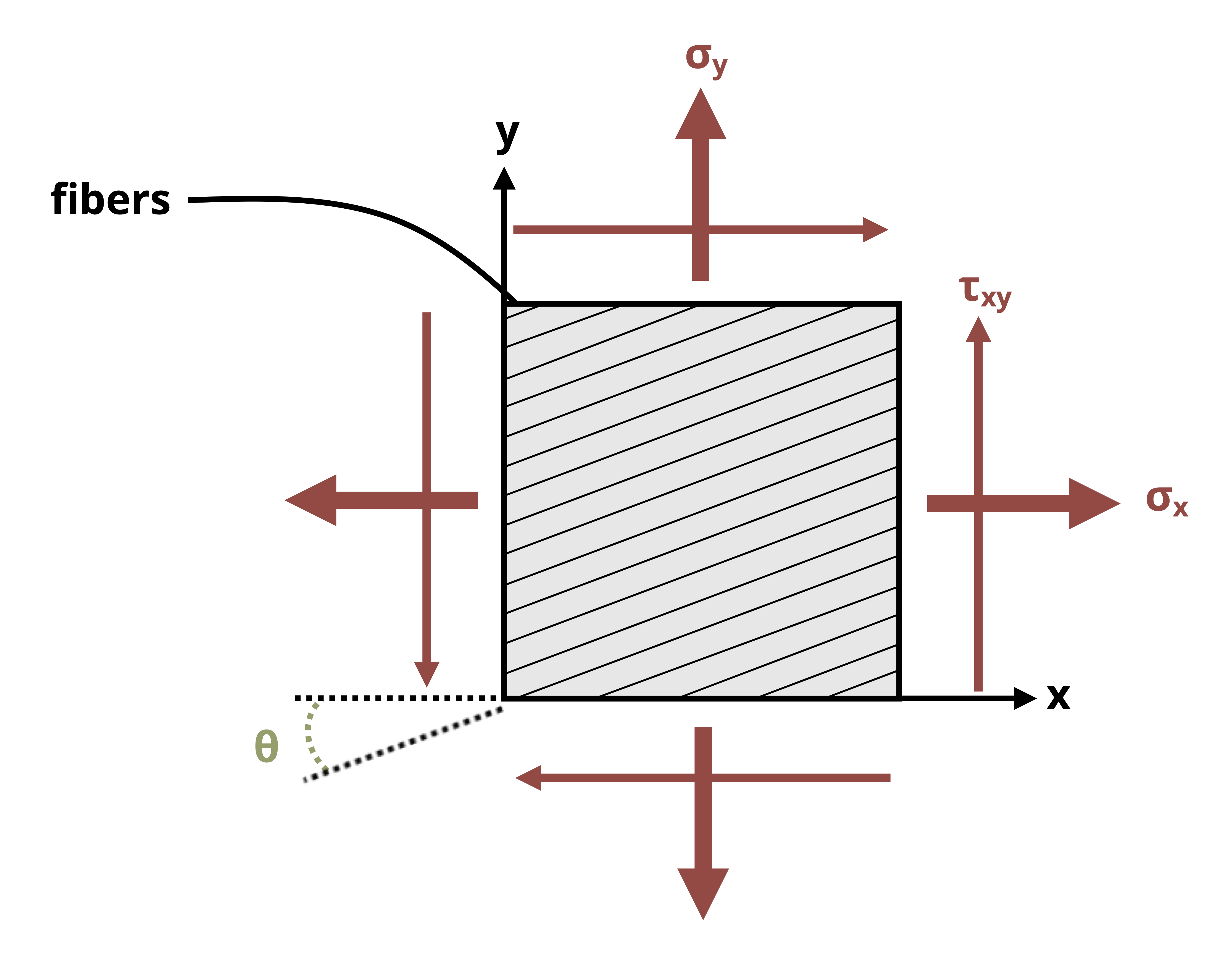

A material made from fibers is subjected to the stresses sigma_y, sigma_x, and tau_xy. The fibers are at an angle theta. [Problem adapted from © Kurt Gramoll CC BY NC-SA 4.0]
