Problem 7.16 - Shear Force & Bending Moment Equations

Problem Statement

Plot the shear force and bending moment diagrams for the loading shown. Assume w = 10 lb/ft, M = 200 lb-ft, and L = 10 ft. What is the maximum absolute shear force and maximum absolute bending moment?

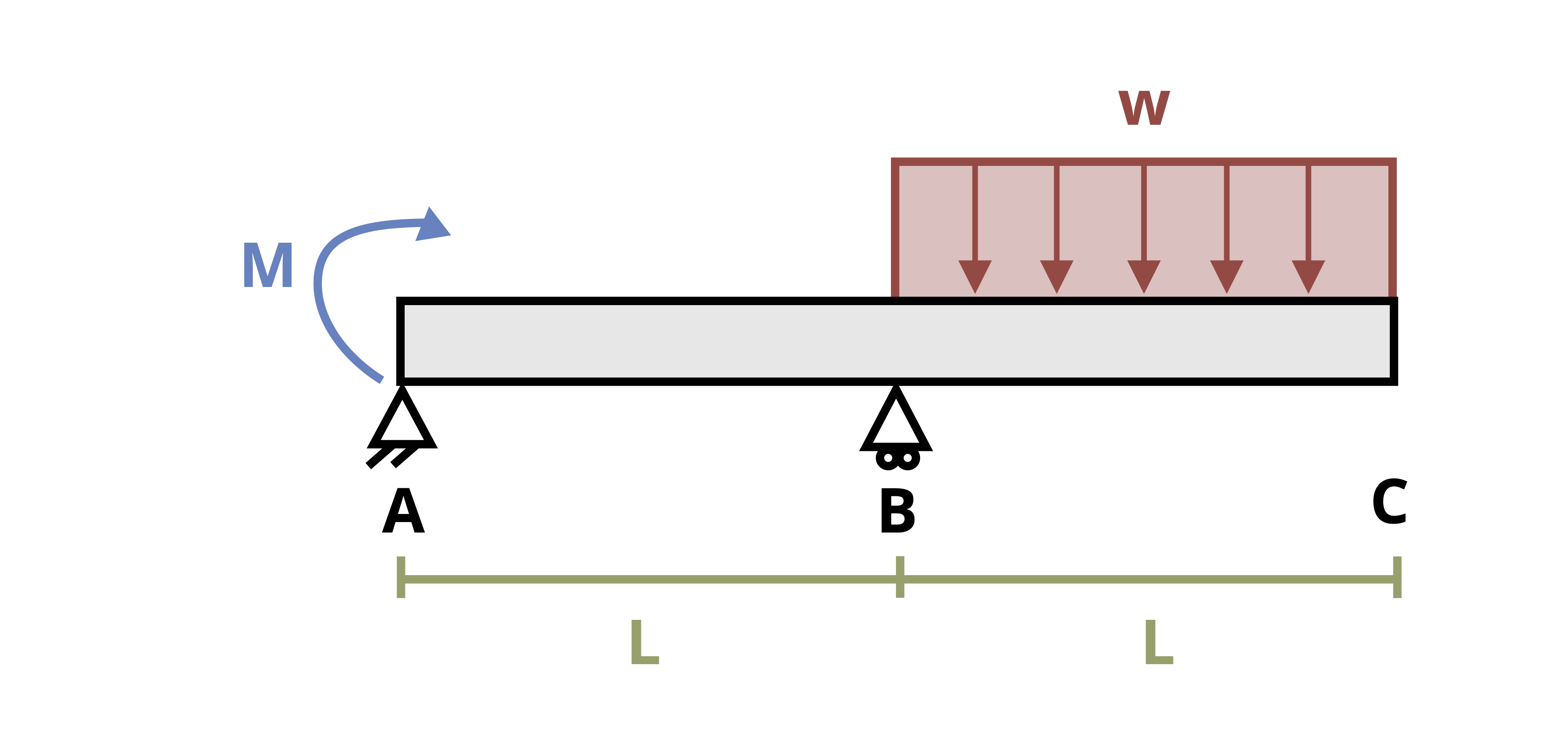

A beam is subjected to a distributed load, w between B and C. A moment is applied clockwise at the left end of the beam. The distance between A and B is L and the distance between B and C is L.

Figure 1: A beam is subjected to a distributed load and a moment with supports at A and B.

[Problem adapted from © Kurt Gramoll CC BY NC-SA 4.0]
