Problem 5.8 - Stress Concentrations

Problem Statement

A flat bar of thickness t = 0.25 in. narrows with fillets as shown. If a load P = 3200 lb is applied, determine the maximum stress in the bar.

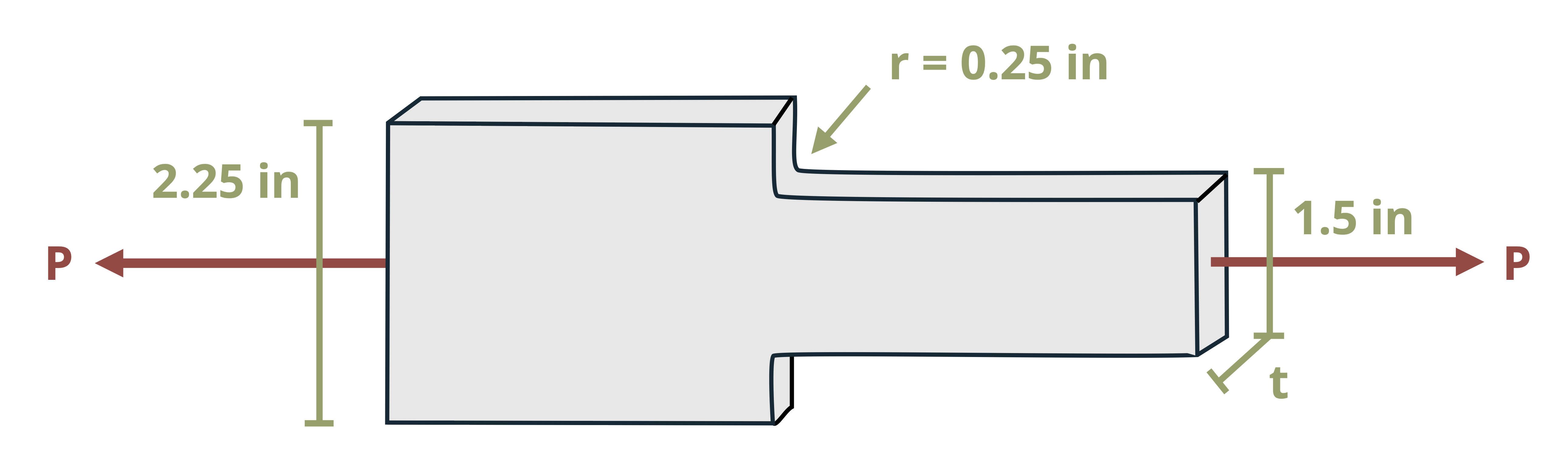

Figure 1: A bar narrows in width.

[Problem adapted from © Chris Galitz CC BY NC-SA 4.0]
