Problem 3.7 - Shear Strain
Problem Statement

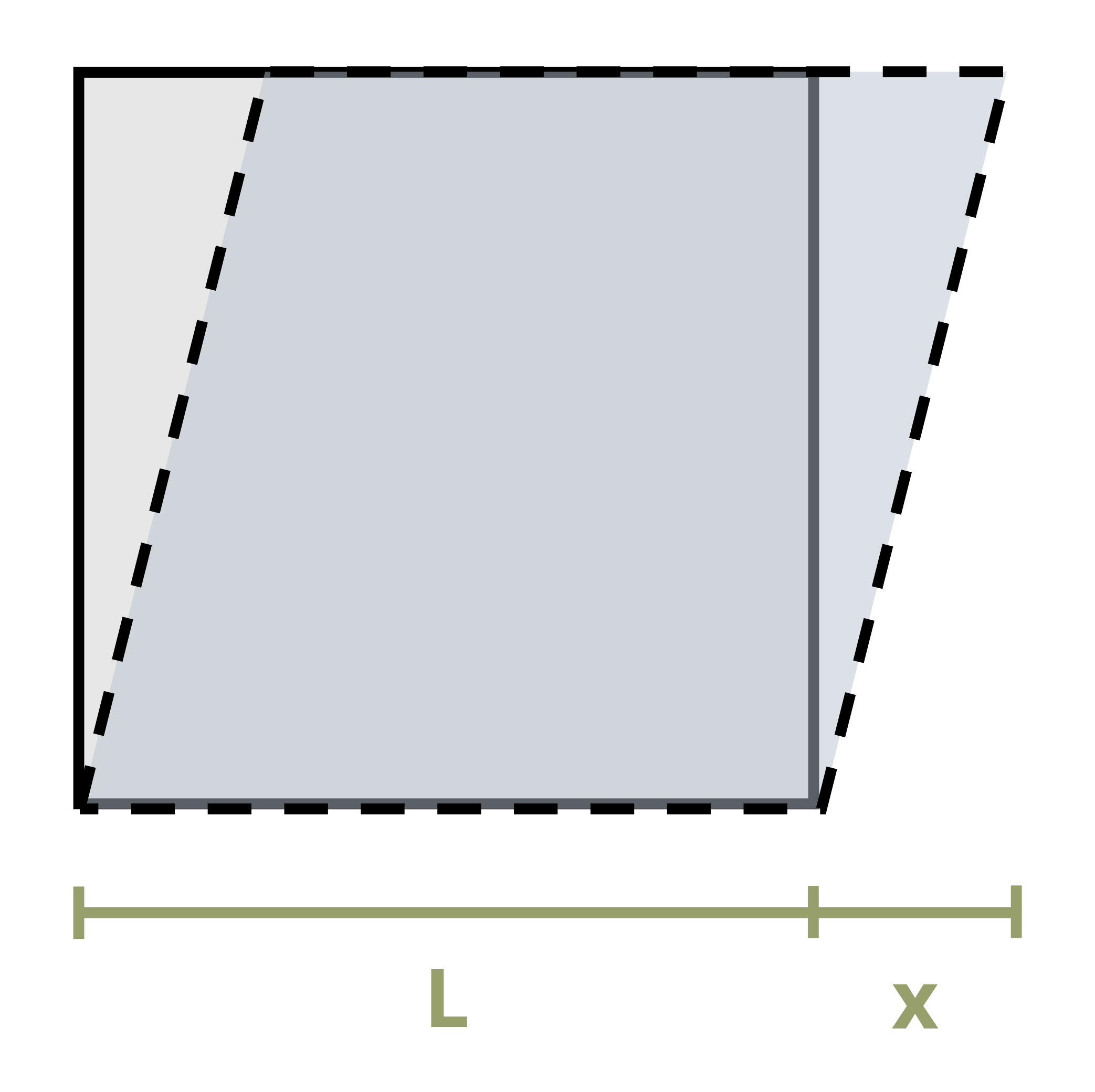

A square plate is deformed due to shear with the new shape shown. If length L = 300 mm and x = 42 mm, determine the shear strain at corner A
[Problem adapted from © Chris Galitz CC BY NC-SA 4.0]
A square plate is deformed due to shear with the new shape shown. If length L = 300 mm and x = 42 mm, determine the shear strain at corner A
[Problem adapted from © Chris Galitz CC BY NC-SA 4.0]
