Problem 7.28 - Graphical Methods for Shear Force & Bending Moment Diagrams

Problem Statement

Plot the shear force and bending moment diagrams for the loading shown. Assume w1 = 50 kN/m, and w2 = 10 kN/m. What is the maximum absolute shear force and maximum absolute bending moment?

A beam is subjected to a distributed load, w1 between B and C. Another distributed load is applied between A and D. The distance between A and B is 40 cm, the distance between B and C is 20 cm, and the distance between C and D is 40 cm.

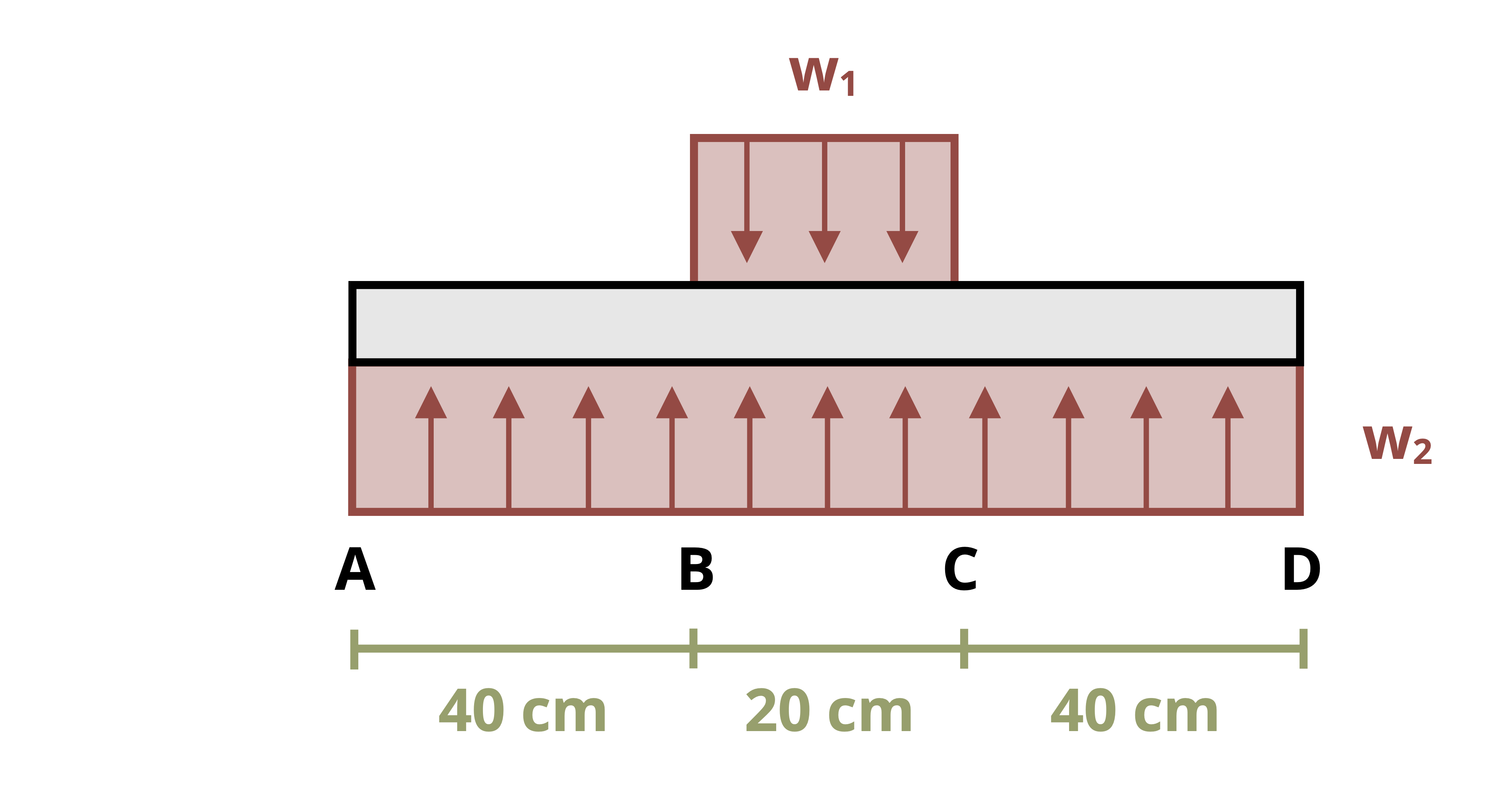

Figure 1: A beam is subjected to two distributed loads.

[Problem adapted from © Kurt Gramoll CC BY NC-SA 4.0]
